Push-fit Pipes & Fittings
Push-fit Pipes & Fittings:
systems cause to introduce push-fit systems that have more easiest & speed in performance & installation in addition to durability & strength. Push-fit system due to its exclusive advantages has continual insurance & make basal evolution in design & implementation of building’s internal drainage system.
Advantages of Push-fit pipe & fitting:
- Complete & continued water stop.
- Unbelievable unique Swiss gasket
- No deformation of gasket during installation and high resistance of it against all chemical materials.
- Have 10 years Quality assurance & liability insurance.
- Creation sound Insulation bu using clamp With EPDM lining.
- No need to solvent, weld and like that , Also decreasing the time & Implementation cost.
- Maintenance free & long term reliability.
- Safe in firing
- Have Smooth internal bore, without any any snag against flow & thereupon pipe obstruction.
- Don’t constrain extra load to building because of low weight.
- Capability of conformity and joint push-fit pipe & fitting to existence and old systems such as Solvent & Alloy.
Push-fit Pipes & Fittings:
| 87 Bend | ||
|---|---|---|
 | D(mm) | L(mm) |
| 50 | 117 | |
| 75 | 149 | |
| 110 | 190 | |
| 125 | 209 | |
| 45 Bend | ||
|---|---|---|
 | D(mm) | L(mm) |
| 50 | 137 | |
| 75 | 166 | |
| 110 | 200 | |
| 125 | 216 | |
| 160 | 263 | |
| 87 Wye | ||
|---|---|---|
 | D(mm) | L(mm) |
| 50 | 165 | |
| 75 | 203 | |
| 110 | 246 | |

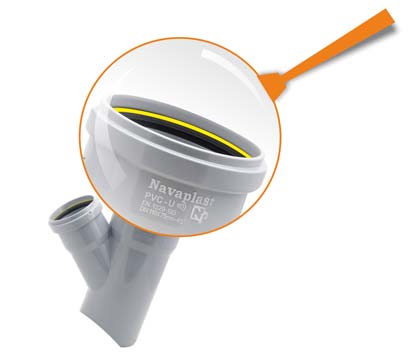

| 45 Wye | ||
|---|---|---|
 | D(mm) | L(mm) |
| 50 | 181 | |
| 75 | 230 | |
| 110 | 287 | |
| 125 | 319 | |
| 160 | 393 | |
| 87 Reduced TEE | ||
|---|---|---|
 | D(mm) | L(mm) |
| 75×50 | 179 | |
| 110×50 | 190 | |
| 110×75 | 214 | |
| 45 Reduced Wye | ||
|---|---|---|
 | D(mm) | L(mm) |
| 75×50 | 195 | |
| 110×50 | 206 | |
| 110×75 | 240 | |
| 125×110 | 299 | |
| 160×110 | 322 | |
| 160×125 | 343 | |
| Invert Reducer | ||
|---|---|---|
 | D(mm) | L(mm) |
| 75×50 | 139 | |
| 110×50 | 165 | |
| 110×75 | 155 | |
| 125×110 | 159 | |
| 160×110 | 207 | |
| 160×125 | 197 | |
| Access Pipe | ||
|---|---|---|
 | D(mm) | L(mm) |
| 110 | 246 | |
| 125 | 269 | |
| Access Plug | ||
|---|---|---|
 | D(mm) | L(mm) |
| 50 | 76 | |
| 75 | 88 | |
| 110 | 108 | |
| 125 | 109 | |
| 160 | 125 | |
| Vent Terminator | ||
|---|---|---|
 | D(mm) | L(mm) |
| 75 | 2/15 | |
| 110 | 2/20 | |
| Enbloc Siphon | ||
|---|---|---|
 | D(mm) | L(mm) |
| 75×50 | 86 | |
| 75 | 88 | |
| 110 | 95 | |
| Siphon | ||
|---|---|---|
 | D(mm) | L(mm) |
| 50×75 | 97 | |
| 75 | 146 | |
| 125×110 | 218 | |
| Elbow 90 with access Plug | ||
|---|---|---|
 | D(mm) | L(mm) |
| 110 | 195 | |
| Coupler | ||
|---|---|---|
 | D(mm) | L(mm) |
| 50 | 107 | |
| 75 | 122 | |
| 110 | 130 | |
| Socket Plug | ||
|---|---|---|
 | D(mm) | L(mm) |
| 50 | 41 | |
| 75 | 50 | |
| 110 | 60 | |
| Four way 45 | ||
|---|---|---|
 | D(mm) | L(mm) |
| 110 | 292 | |
| Tee 87 with access Plug | ||
|---|---|---|
 | D(mm) | L(mm) |
| 110 | 250 | |
| Double Socket Pipe | ||
|---|---|---|
| Length | Size | |
| cm | inch | mm |
| ... | ½2" | 50 |
| 50 | ||
| 100 | ||
| 200 | ||
| 300 | ||
| ... | ½2" | 75 |
| 50 | ||
| 100 | ||
| 200 | ||
| 300 | ||
| ... | 4" | 110 |
| 50 | ||
| 100 | ||
| 200 | ||
| 300 | ||
| ... | 5" | 125 |
| 50 | ||
| 100 | ||
| 200 | ||
| 300 | ||
| ... | 6" | 160 |
| 50 | ||
| 100 | ||
| 200 | ||
| 300 | ||
| One Socket Pipe | ||
|---|---|---|
| Length | Size | |
| cm | inch | mm |
| 30 | ½2" | 50 |
| 50 | ||
| 100 | ||
| 200 | ||
| 300 | ||
| 30 | ½2" | 75 |
| 50 | ||
| 100 | ||
| 200 | ||
| 300 | ||
| 30 | 4" | 110 |
| 50 | ||
| 100 | ||
| 200 | ||
| 300 | ||
| 30 | 5" | 125 |
| 50 | ||
| 100 | ||
| 200 | ||
| 300 | ||
| 30 | 6" | 160 |
| 50 | ||
| 100 | ||
| 200 | ||
| 300 | ||
